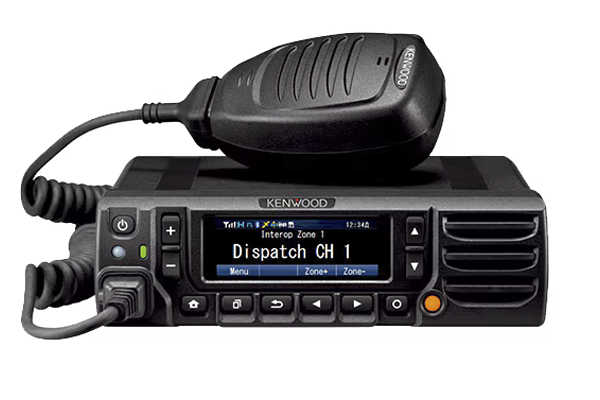

VHF / UHF / 700-800 MHz Mobile Radio
P25 (I&II) / NXDN / DMR
- Full Color Display
- Detachable Front Panel / Single or Dual remote Front Panel
- Dual Mic TX Noise Cancelling
- Built-in Bluetooth
- Built-in GPS
- SD Card Slot
- Multi-Digital + FM Analog Operation
・Gen2 & NXDN® Conventional/Type-C Trunking Protocol
・DMR Tier II Conventional / DMR Tier III Trunking
・P25 Conventional/Trunking (Phase 1/Phase 2) - Built-in Encryption / AES256 Encryption Option
- FM Analog Conventional & LTR Zones
- Color 2.55″ (154 x 422 pixel) TFT Display
- Color GUI and Multi-line Text Display
- 4 W/4 Ω; 3 W/4 Ω for the Remote Control Head
- 6 Front PF keys & 4 Up / Down Selectors
- Emergency Button
- MDC-1200 / FleetSync®/II
- Maximum of 4,000 CH/Radio capacity, 512 CH/Zone, 128 Zones
Click to add this item to cart.
Description
| SPECIFICATIONS | ||||||||
|---|---|---|---|---|---|---|---|---|
| GENERAL | NX-5700 | NX-5800 | NX-5900 | |||||
| Frequency Range | 136-174 MHz | Type 1: 450-520 MHz Type 2: 380-470 MHz |
RX: 763-776, 851-870 MHz TX: 763-776, 793-806, 806-825, 851-870 MHz |
|||||
| Max. Channels Per Radio | 1024 (Up to 4000 channels with option) | |||||||
| Number of Zones | 128 | |||||||
| Max. Channels Per Zone | 512 | |||||||
| Channel Spacing | Analog | 12.5/15/20/25/30 kHz | 12.5/25 kHz | 12.5/25 kHz | ||||
| Digital | 6.25/12.5 kHz | |||||||
| Power Supply | 13.6 V DC ±15 % | |||||||
| Current Drain | Standby | 0.45 A | ||||||
| RX | 2.3 A | |||||||
| TX | 13 A | |||||||
| Operating Temperature | -30 °C to +60 °C | |||||||
| Frequency Stability | ±1.0 ppm | |||||||
|
Dimensions |
Radio w / Control Head (KCH-19) | 170.0 x 48.0 x 176.0 mm | 171.0 x 48.0 x 196 mm | |||||
| Weight (Nett) | Radio w / Control Head(KCH-19) | 1.6 kg | ||||||
| Sensitivity | NXDN 6.25 kHz Digital (3 % BER) |
0.20 μV | ||||||
| NXDN 12.5 kHz Digital (3 % BER) |
0.25 μV | |||||||
| DMR Digital (5% BER) | 0.25 μV | |||||||
| DMR Digital (1% BER) | 0.40 μV | |||||||
| P25 Digital (5 % BER) | 0.25 μV | |||||||
| P25h Digital (1 % BER) | 0.40 μV | |||||||
| Analog (12 dB SINAD) | 0.25 μV | |||||||
| Selectivity | Analog @ 12.5 kHz | 71 dB | 70 dB | |||||
| Analog @ 25 kHz | 81 dB | 78 dB | ||||||
| Intermodulation | 80 dB | |||||||
| Spurious Rejection | 85 dB | |||||||
| Audio Distortion | 2 % | |||||||
| Audio Output Power | 4 W/4 Ω (Remote Control Head: 3 W/4 Ω) | |||||||
| TRANSMITTER | ||||||||
| RF Power Output Power | 50 to 5 W | 45 to 5 W | 30 to 2 W (700 MHz) 35 to 2 W (800 MHz) |
|||||
| Spurious Emission | -73 dB | -75 dB | -80 dB | |||||
| FM Hum & Noise | Analog @ 12.5 kHz | 45 dB | 40 dB | |||||
| Analog @ 25 kHz | 50 dB | 45 dB | ||||||
| Audio Distortion | 2 % | |||||||
| Emission Designator | 16K0F3E, 14KOF3E*, 11K0F3E, 8K10F1E, 8K10F1D, 8K10F1W, 8K30F1E,8K30F1D, 8K30F7W, 7K60FXE, 7K60FXD, 4K00F1E, 4K00F1D, 4K00F7W, 4K00F2D | |||||||
