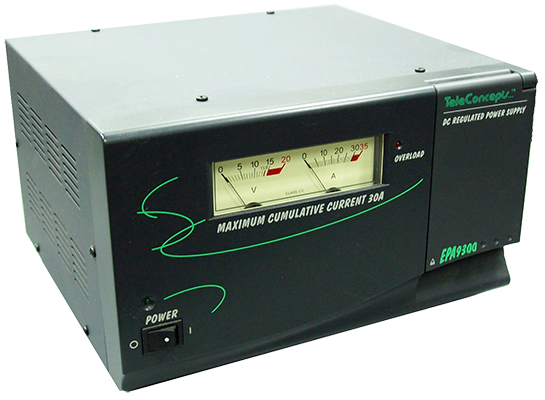

TELECONCEPTS EPA-9300
Regulated DC Power Supply
- Type : Linear (transformer)
- 1 – 15VDC adjustable output control
- Low RFI
- Temperature control cooling fan
- Overload and short circuit protection
- Output : 28A Terminals and 3A terminals
- Voltage and Current Analog Indicators
Click to add this item to cart.
Description
| TELECONCEPTS EPA-9300 SPECIFICATIONS | |||
|---|---|---|---|
| Parameter | MIN | TYP | MAX |
| Output Voltage Range, V | 1 | 15 | |
| Output Current, A | 28 | ||
| Overload Current, A | 30 | 33 | 36 |
| Voltage Regulation (0-100% Load), mV | 50 | ||
| Ripple & Noise, mV | 5 | ||
| Fuse, A | 6.3 | ||
| Short Circuit Protection Current, mA | 1500 | ||
