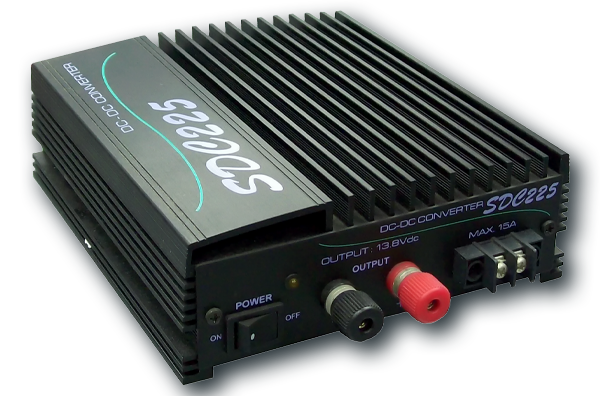

TELECONCEPTS SDC-225
DC-DC CONVERTER. FIXED VOLTAGE OUTPUT
- 22 – 30 V DC Input
- High Efficiency 88%
- Overload, short circuit, overvoltage protection
- Two outputs
- Switching conversion mode
Click to add this item to cart.
Description
| TELECONCEPTS SDC-225 SPECIFICATIONS | |||
|---|---|---|---|
| Parameter | Value | ||
| Type | Switching Conversion Mode | ||
| Input Voltage | DC 22 – 30 V | ||
| Output Voltage | 13.8 V DC | ||
| No. of Outputs | 2, terminals | ||
| Rated Output Current | 20 A | ||
| Efficiency | more than 88% | ||
| Protection | Overload, Short Circuit Overvoltage |
||
| Ripple & Noise | Less than 20 mVp-p | ||
| Voltage Load Regulation | less than 50 mV | ||
| Cooling | Natural Air convection | ||
| Fuse | Car Blade Fuse | ||
| Dimensions | W156 x H87 x D168 mm | ||
| Weight | 1.4 kg | ||
