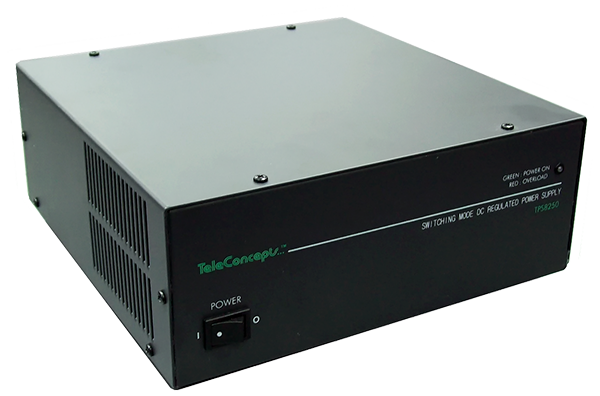

TELECONCEPTS TPS-8250
Compact, Fixed 13.8 VDC output
25A DC Power Supply
- High RFI immunity
- Thermostat Control Fan Cooling
- User adjustable fine tune setting
- Floating Ground & Active PFC
- Output Over Voltage & Constant Current Protection
Click to add this item to cart.
Description
ProtectionOverload, Overvoltage, Short Cirsuit, Overheating
| TELECONCEPTS TPA-1515 SPECIFICATIONS | |||
|---|---|---|---|
| Parameter | Value | ||
| Input Voltage | 200 – 240 V AC, 50 Hz | ||
| Output Voltage | 13.8 V DC | ||
| No. of Outputs | 1, terminals at rear panel | ||
| Output Current | 25 A | ||
| Ripple & Noise | 50 mV p-p | ||
| Voltage Load Regulation | less than 50 mV | ||
| Cooling System | Variable Speed thermosat control fan | ||
| Dimensions | W220 x H110 x D220 mm | ||
| Weight | 2.7 kg | ||
