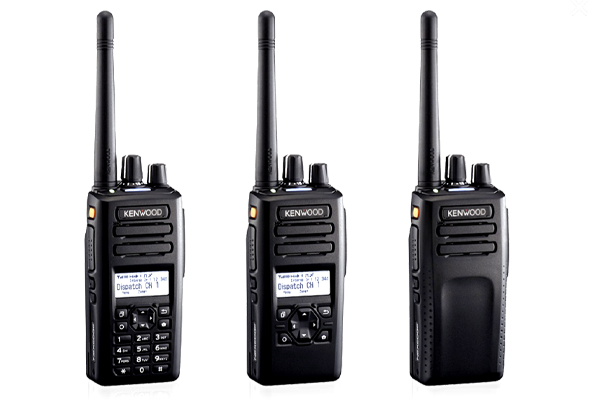

VHF / UHF / 800 MHZ
Analogue/Digital Handheld Radio
Multiprotocol – FM / NXDN / DMR
- NXDN® Conventional and Type-C & Gen2 Trunking
- DMR Tier 2 Conventional & Site Roaming
- DMR Auto Slot Select
- DMR Tier 3 Trunking
- Mixed Digital & FM Analog Operation allows gradual migration at your own pace
- 4-Line Basic Frame (2-Line Main/Sub-LCD, icon & key guide) / 14 Characters
- 5-Line Text Message Frame (3 Lines of Text, icon & key guide)
- 7-color Light Bar Indicator on the top panel. Individual color can be set for each channel
- 4-way Directional-pad (D-pad) for intuitive control and operation
- Built-In GPS Receiver/Antenna for effective fleet and incident management
- Built-in Bluetooth® for hands-free operation for IoT applications- Applicable Bluetooth
- profiles: HSP (Headset Profile) and SPP (Serial Port Profile)
- Optional DES and AES Encryption
- Built-in Motion Sensor (Man-down, Stationary and Motion Detection)
- IP54/55/67 and MIL-STD-810 C/D/E/F/G
- 1 Watt Audio Output Power
- UHF: 120 MHz capability
- Intrinsically Safe Option
- Paging Call / Emergency Call
Status/Text Message /Remote Stun/Kill/Check
Click to add this item to cart.
Description
SPECIFICATIONS
| GENERAL | NX-3220 | NX-3320 | NX-3420 | |
|---|---|---|---|---|
| Frequency Range | 136-174 MHz | 400-520 MHz | TX/RX: 851-870, 935-941 MHz TX:806-825, 896-902 MHz |
|
| Max. Channels Per Radio | Up to 1000 CH with option | |||
| Number of Channels | 260 (64 for no LCD models) | |||
| Number of Zones | 128 (4 for no LCD models) | |||
| Channel Spacing | Analog | 12.5/15/25*/30* kHz | 12.5/25* kHz | 12.5/25* kHz |
| Digital | 6.25 kHz/12.5 kHz | 6.25 kHz/12.5 kHz | 6.25 kHz/12.5 kHz | |
| Power Supply | 7.5 V DC +-20 % | |||
| Battery Life 5-5-90(FDMA conventional / Trunking. TDMA Conventional / Trunking) | KNB-55L (1,480 mAh) | 8.5 / 6.5 hours, 12.5 / 9 hours | 9 / 7 hours, 12 / 9 hours | |
| KNB-56N (1,400 mAh | 7.5 / 6 hours, 11 / 8 hours | 8 / 6 hours, 10.5 / 8 hours | ||
| KNB-57L (2,000 mAh) | 12 / 9.5 hours, 17.5 / 13 hours | 13 / 10 hours, 17 / 13 hours | ||
| KNB-78L (2,860 mAh) | 17.5 / 13.5 hours, 25 / 18.5 hours | 18.5 / 14 hours, 24 / 18.5 hours | ||
| KNB-79LCM (2,860 mAh) | 15 / 11.5 hours, 21.5 / 16 hours | 15.5 / 12 hours, 20.5 / 16 hours | ||
| Operating Temperature | -30ºC to +60ºC | |||
| Frequency Stability | ±0.5 ppm (-30°C to +60°C; +25°C Ref.) | |||
| Dimensions (W x H x D) Projections Not Included | Radio only | 56 x 119.6 x 36.4 mm | ||
| With KNB-55L | 56 x 119.6 x 36.4 mm | |||
| With KNB-56N | 56 x 119.6 x 42.7 mm | |||
| With KNB-57L | 56 x 119.6 x 39 mm | |||
| KNB-78L, KNB-79LCM | 56 x 119.6 x 44.9 mm | |||
| Weight | Radio only | 220 g | ||
| KNB-55L (1,480 mAh) | 315 g | |||
| KNB-56N (1,400 mAh) | 410 g | |||
| KNB-57L (2,000 mAh) | 340 g | |||
| KNB-78L, KNB-79LCM | 385 g / 395 g | |||
| RECEIVER | NX-3220 | NX-3320 | NX-3420 | |
| Sensitivity | NXDN® 6.25 kHz Digital (3% BER) | 0.20 μV | ||
| NXDN®12.5 kHz Digital (3% BER) | 0.25 μV | |||
| DMR 12.5 KHz Digital (5% BER) | 0.30 µV | |||
| DMR 12.5 KHz Digital (1% BER) | 0.45 µV | |||
| Analog (12dB SINAD) | 0.25 µV | |||
| Selectivity | Analog @ 12.5 kHz | 65 dB | 60 dB | |
| Analog @ 25 kHz | 72 dB | 70 dB | ||
| Intermodulation | 70 dB | |||
| Spurious Rejection | 70 dB | |||
| Audio Distortion | 3% | |||
| Audio Output Power | 500 mW/8Ω (3% Distortion) / 1,000 mW/8Ω (5% Distortion) | |||
| TRANSMITTER | NX-3220 | NX-3320 | NX-3420 | |
| RF Power Output (High / Mid / Low) |
5 W/4 W/1 W | 3 W / 1 W | ||
| Spurious Emission | -70 dB | |||
| FM Hum & Noise | Analog @ 12.5kHz | 40 dB | ||
| Analog @ 25kHz | 45 dB | |||
| Audio Distortion | Less than 3% | |||
| Digital Protocol | ETSI TS 102 361-1, -2, -3, -4 | |||
| Emission Designator | 16K0F3E*, 14K0F3E**, 11K0F3E, 8K30F1E, 8K30F1D, 8K30F7W, 7K60FXD, 7K60FXE, 4K00F1E, 4K00F1D, 4K00F7W, 4K00F2D |
|||
